ARX USB DI HP

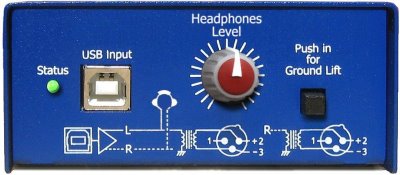

USB-DI HP med samma funktioner som USB-DI, men med hörlursuttag både 6,3 mm 0ch 3,5 mm (med separat volymkontroll) vilket ger bra möjlighet för monitorering av signal innan fader (pre-fader listening).
Beskrivning
Art.nr: ARX128
USB-DI HP Specifications
Input Connector USB type B port
Codec 24 bit High Resolution, 44.1 and 48 KHz
Output Impedance 300 Ohms Transformer Balanced
Output Level 0dB
Output Noise
USB - System dependent
ISO transformer - Environment sensitive
Power Operating current via USB Port 80mA
Headphone output specs:
Max. output level 300mW @ 32 Ohms
Frequency Response 20 - 20 KHz ± 0.5 dB
Dynamic range 90dB 'A' Weighted
Frequency Response 20 - 20 KHz ± 0.5 dB

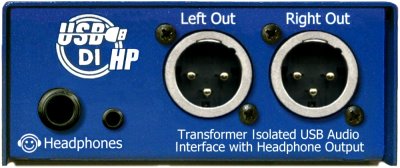

Output Connectors
2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground
Construction
All-steel powdercoated chassis, fibreglass PCB, epoxy printing,
slip-resistant rubber basepad
System Requirements
- Windows PC running Windows XP, 7/8/10 or Mac running OS X or later
- USB port
